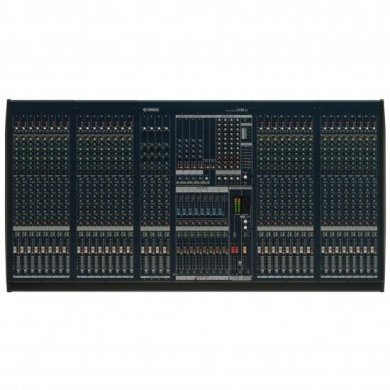

YAMAHA IM8/32 - mikser
* Professional build, features, and performance for serious live sound applications.
* Unique Yamaha one-knob compressor on all mono input channels - Input section
* Comprehensive master section provides extensive signal routing and control versatility - Master section
* Output matrix affords extra output flexibility, particularly for installations.
* USB audio I/O allows direct digital recording and playback with the supplied Cubase AI4 audio workstation software.
* Mic inputs: 32
* Phantom power: +48V DC (each ch)
* Line inputs: 4 x stereo
* Mixing channels: 32 mono + 4 stereo
* Input channel functions: HPF (80Hz, 12dB/oct), 4 band mid-sweep PEQ (4band PEQ for ST CH)
* On-board processors: Ch compressor on mono ch, USB Audio I/O
* GROUP: 8
* AUX: 8
* MAIN: Stereo, Mono
* MATRIX: 4
* Total harmonic distortion less than 0.1% (20Hz-20kHz)
* Frequency response 0, +1.0, -3.0dB 20Hz-20kHz
* Equivalent input noise -128dBu
* Residual output noise -98 dBu
* Crosstalk less than -70 dB
* Power requirements: Power Supply PW8
* Power consumption: 200W (PW8)
* Width 1471.5 mm (58")
* Height 219.0 mm (8.7")
* Depth 739.0 mm (29.1")
* Net weight 44.5 kg (98.1 lbs)
* Accessories CUBASE AI4 software, AC cable (3m)
![[img:1]](/img/artykuly/zdjecia/yamaha-22450-min.webp)
* Unique Yamaha one-knob compressor on all mono input channels - Input section
* Comprehensive master section provides extensive signal routing and control versatility - Master section
* Output matrix affords extra output flexibility, particularly for installations.
* USB audio I/O allows direct digital recording and playback with the supplied Cubase AI4 audio workstation software.
* Mic inputs: 32
* Phantom power: +48V DC (each ch)
* Line inputs: 4 x stereo
* Mixing channels: 32 mono + 4 stereo
* Input channel functions: HPF (80Hz, 12dB/oct), 4 band mid-sweep PEQ (4band PEQ for ST CH)
* On-board processors: Ch compressor on mono ch, USB Audio I/O
* GROUP: 8
* AUX: 8
* MAIN: Stereo, Mono
* MATRIX: 4
* Total harmonic distortion less than 0.1% (20Hz-20kHz)
* Frequency response 0, +1.0, -3.0dB 20Hz-20kHz
* Equivalent input noise -128dBu
* Residual output noise -98 dBu
* Crosstalk less than -70 dB
* Power requirements: Power Supply PW8
* Power consumption: 200W (PW8)
* Width 1471.5 mm (58")
* Height 219.0 mm (8.7")
* Depth 739.0 mm (29.1")
* Net weight 44.5 kg (98.1 lbs)
* Accessories CUBASE AI4 software, AC cable (3m)
