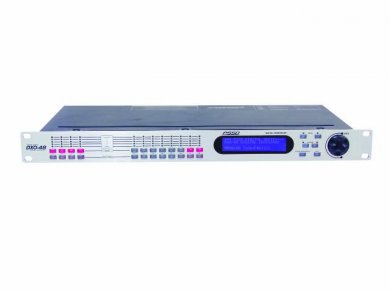

PSSO DXO-48 - procesor / kontroler nagłośnienia

Digital system controller

* 4 inputs and 8 outputs with flexible signal routing
* 32-bit (40-bit extended) floating point DSP
* 96 kHz sampling rate
* 24 bit A-D/D-A-converter
* 6 fully parametric equalizers per input and output
* Slopes up to 48 dB/octave
* Backlit 4 lines x 20 character display
* 30 user programs can be memorized
* Up to 500 ms signal delay for the inputs and outputs adjustable
* Delay displayed in milliseconds, meters, feet and frame/second
* Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
* Lock-function for protecting the program settings
* Phase Invert per output
* Digital adjustment of the input gain ± 15 dB

Power supply: 115/230 V AC, 50/60 Hz ~
Power consumption: 30 W
Inputs: 4, active, balanced
Gain range: -40 to +15 dB
Input impedance: 10 kOhms
Frequency Response: 15 Hz - 20 kHz, ± 0,25 dB
15 Hz - 40 kHz, ± 3 dB
Outputs: 8, active, balanced with automatic correction for unbalanced loading
Output impedance: <50 mOhms (electronically balanced)
Output gain range: ± 21 dB
Maximum output level: +20 dBu
Frequency Response: 20 Hz - 20 kHz, ± 0,1 dB
15 Hz - 40 kHz, ± 3 dB
Distorsion: 0.001 % (1 kHz @ 18 dBu)
S/N-ratio: 115 dB
Channel separation: < -100 dB
Slopes: 6, 12, 18, 24 or 48 dB/Oktave
Type: Bessel, Butterworth or Linkwitz-Riley
Crossover frequency: 20 Hz - 20 kHz
Delay: 0~0,45 s
Dimensions (WxHxD): 482 x 44 x 200 mm
Weight: 3 kg

Gwarancja 24 miesiące

Kod produktu: 10356360
